Why are some parameters crossed out in LMA?

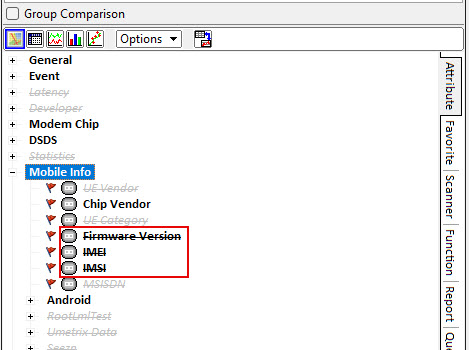

While using Link Master Analysis (LMA), you may come across a parameter which is both filled in and crossed out.

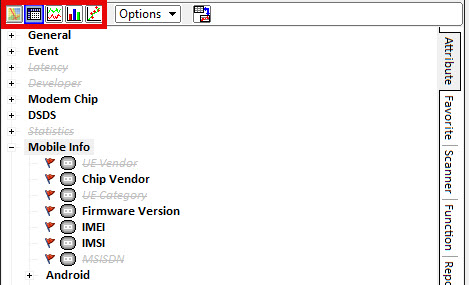

The reason these are crossed out is that the selected view mode is not compatible with the parameter type. For example, above the IMEI cannot be displayed on top of a Map, so the parameter is crossed out. If the view mode is changed to grid, the parameter is no longer crossed out.
In summary,
- If a parameter is greyed out and crossed out, it has not been imported into LMA
- If a parameter is filled in and crossed out, it has been imported but cannot be displayed using the selected view mode
- If a parameter is just filled in, it has been imported and can be displayed using the selected view mode
