Log Converter

Log Converter

In this article, we will cover how you can use LogConverter to convert files you export from LMA.

Step 1: Prepare the Favorite File

Run Link Master Analysis (LMA), and create a favorite group that contains all of the attributes you want to export to your CSV file.

Once you've prepared your favorite group, right-click on the name of the group and select Export Favorite - Selected Group.

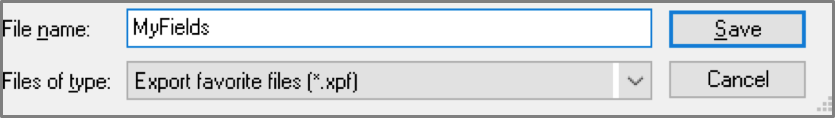

You'll be prompted to provide a file name. After you've done this, click Save to proceed.

Step 2: Run the Log Converter

Launch LogConverter.

Open the Option tab, and provide the location of your favorite file, as well as where you want the converted file to be exported.

Go back to the Convert tab, and click Select LogFolder and following any instructions displayed. When done, click Convert to proceed. You'll be able to access your file as soon as LogConverter finishes the conversion process.

That's all there is to converting a file with LogConverter!
