GPS with Link Master

GPS with Link Master

Question:  Can I use the phone GPS to collect data with LML?

Answer:
Yes, you can use the GPS from the phone.  Link Master has the option to collect GPS data from either a standard USB puck such as this from GlobalSat (GlobalSat BU-353-S4 USB GPS Receiver) or directly from the phone.  The GPS from the standard puck will have a higher accuracy, but if you don't have one available, then use the phone is fine.  Here is how you set it up:

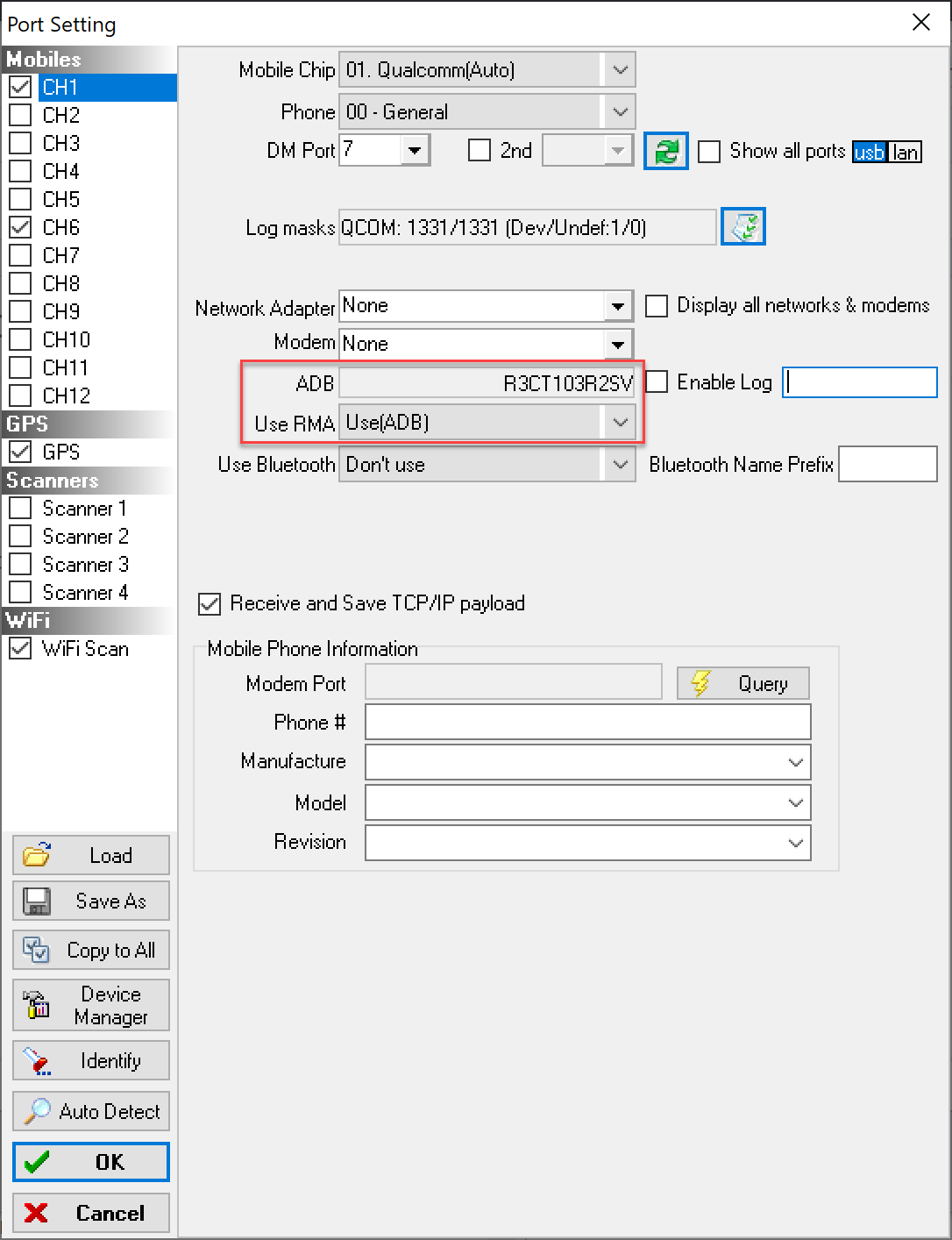

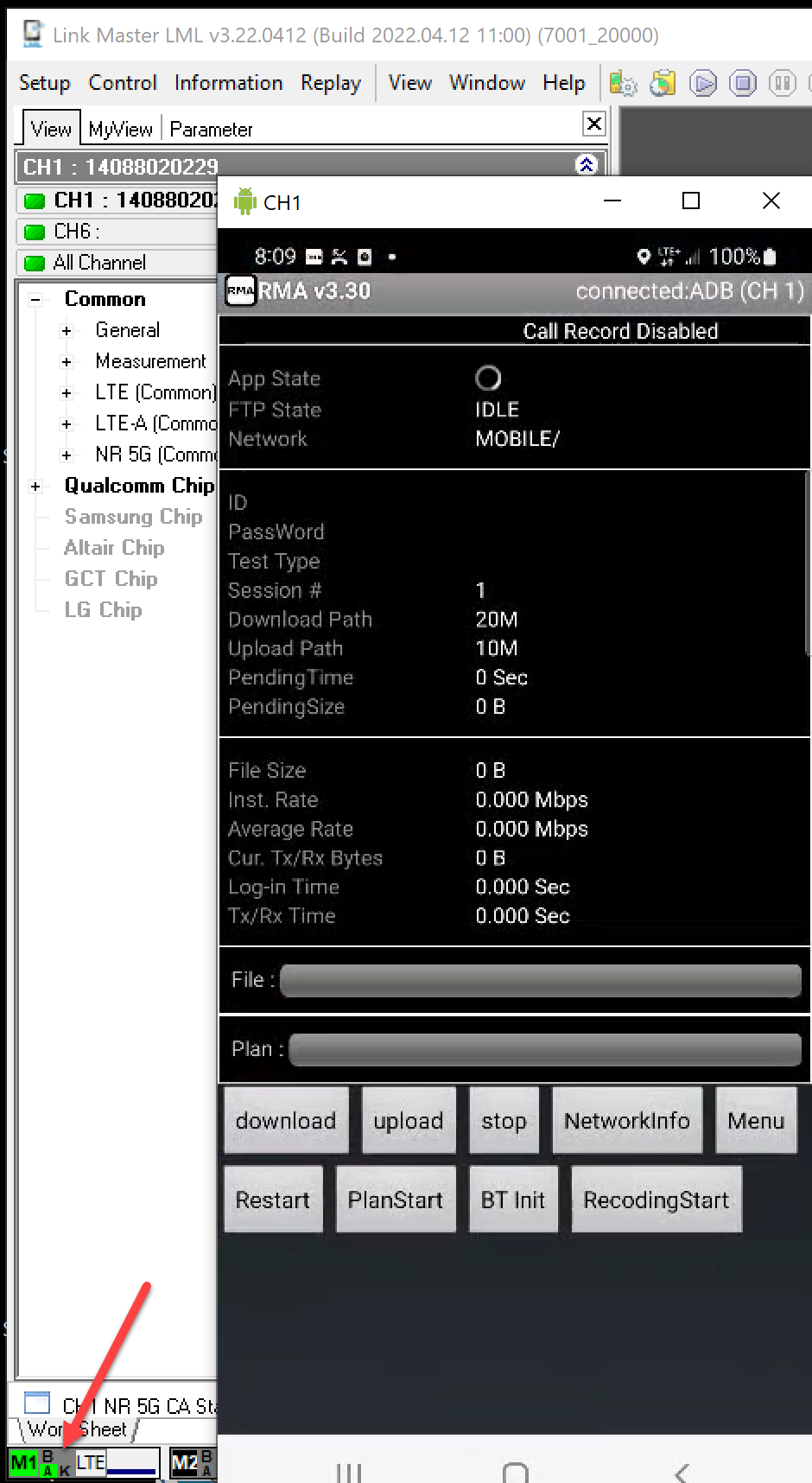

1. Make sure that RMA is installed on the phone

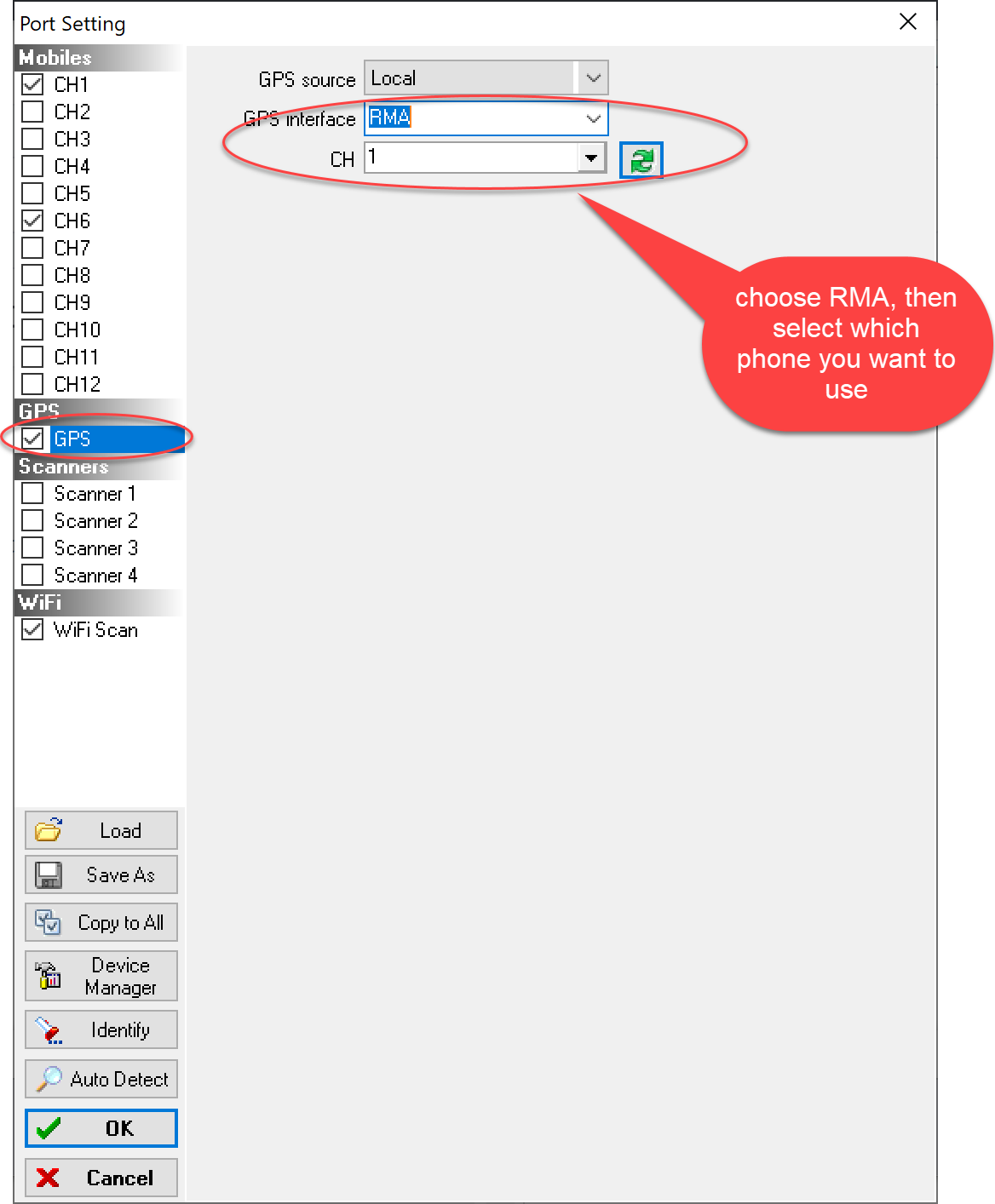

2. From the port setting configure the channel to use RMA, then select GPS:

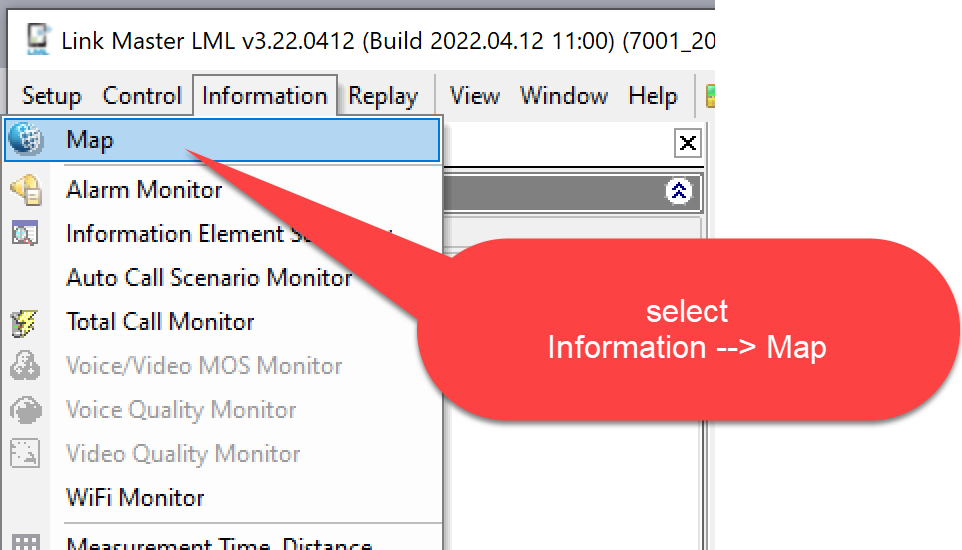

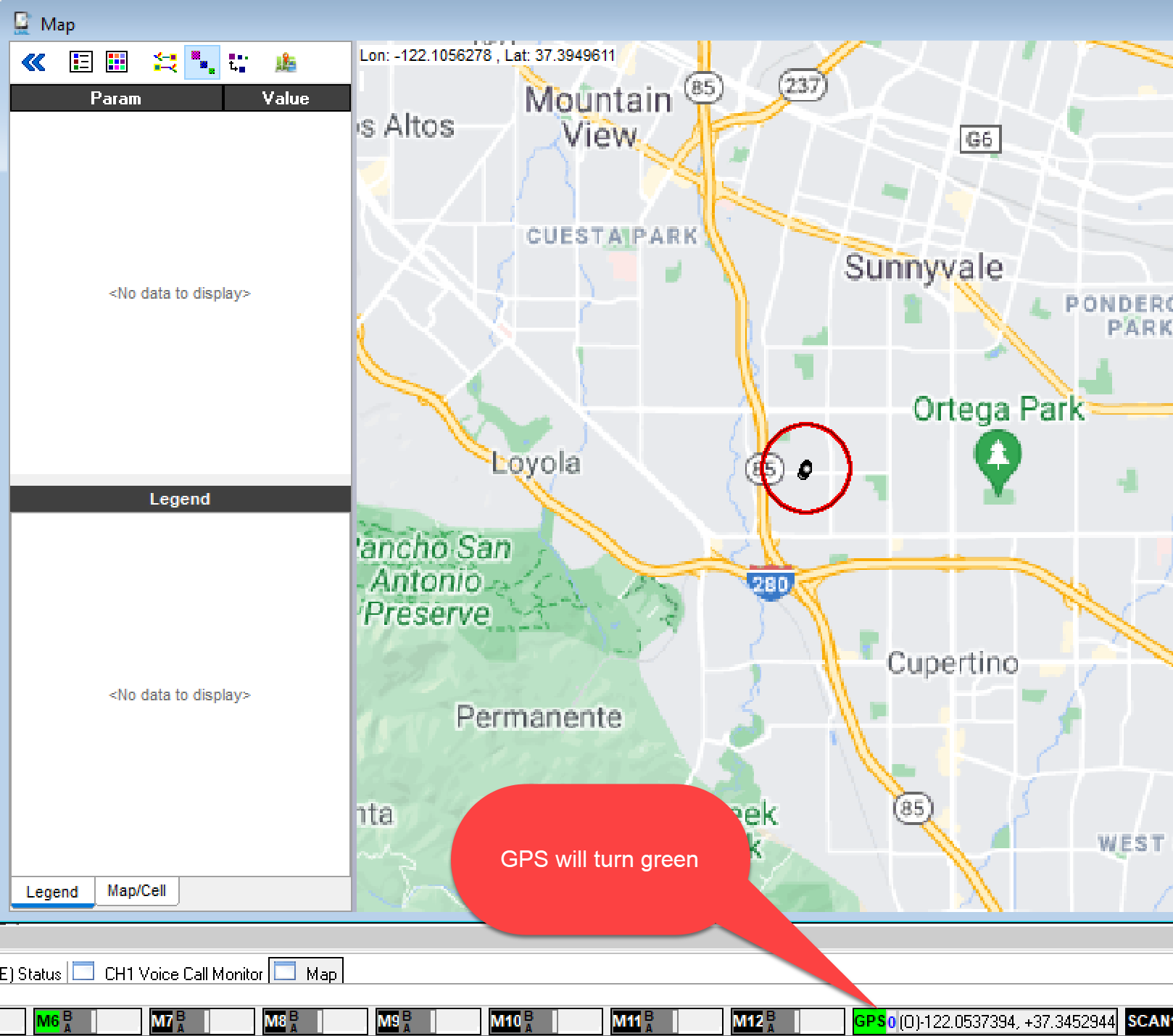

To view your location:
